Cuttings Dryer

    CD Series

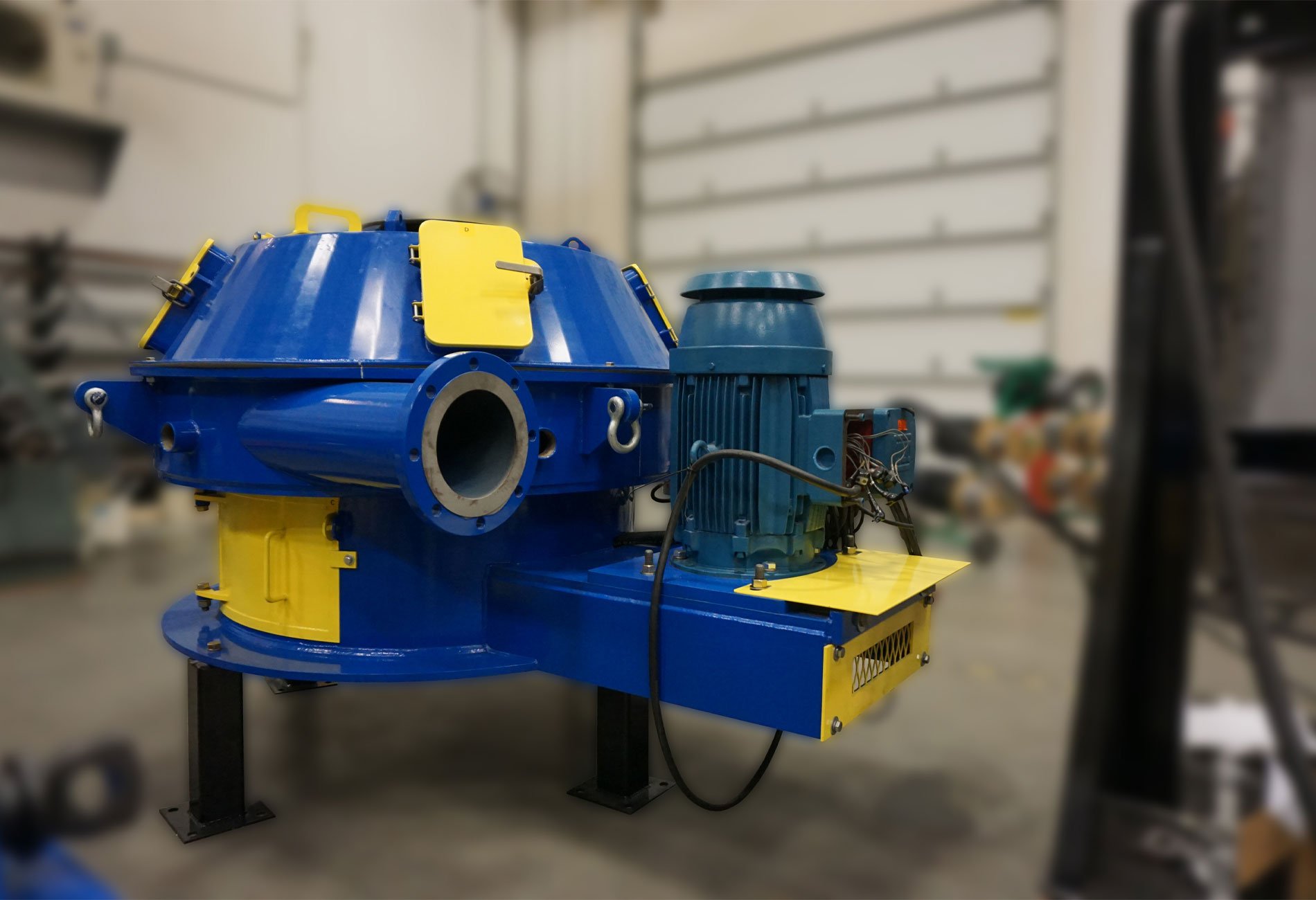

    Vertical Cuttings Dryer

    Centrisys' CD Series Vertical Cuttings Dryer Enables High Performance and Efficient Process

    The Centrisys CD2600 is a VCD designed to recover base fluids and reduce hydrocarbons from drill cuttings. Operation is based on centrifugal force, enabling a high performance and efficient process. The CD2600 is designed for oil based drill cuttings management where operators are concerned about drilling fluid losses and the environmental impact of oily cuttings. Based on feedstock, liquid content can go below 4%.

    The CD2600 operates with a manual NEMA 7X Class 1-DIV 1 explosion proof starter. VFD controllers are customizable, based on process specifications. Electrical control systems are designed with the following:

    • Class 1/DIV 1 panel enclosure
    • Start-up control panel
    • Soft start with by-pass
    • Mount frame with certified lift lugs
    • (1) 25’ input cable (#2, 4C)
    • (1) 25’ output cable (#2, 4C)
    • (4) 25’ output cable (#14, 4C)

    CD Cuttings Dryer Advantages

    image-number-1
    Automatic shut-off protects the gearbox when the oil pressure is low
    image-number-2
    Individually balanced rotating components ensures a vibration-free environment
    image-number-3
    Hassle-Free Maintenance:
    • Wear parts are accessible from the top
    • Belts are easily replaced without removing the drive assembly
    • Entire assembly engineered to be removed with little effort
    image-number-4

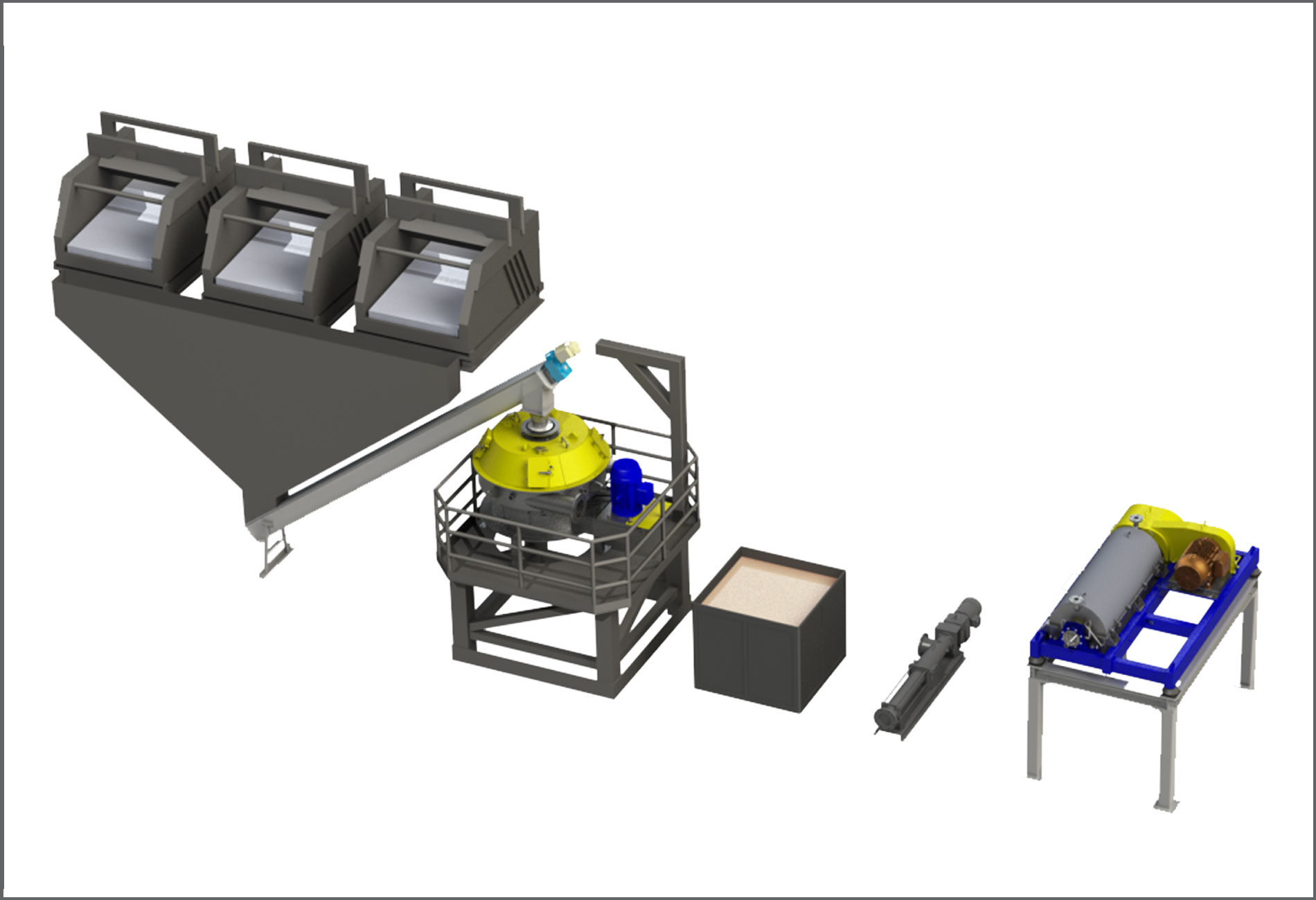

    Custom Design Solutions: Systems can be fully engineered for customer specific needs including: support stands, wraparound  decks/walkways, discharge chutes, handrails and jib poles. Mobile and containerized systems are our specialty.
    image-number-5
    Lab Services: Centrisys not only provides lab analysis and lab results, but also works with clients to provide reliable, economical and safe recommendations for individual processes.
    • Particle size analysis
    • Retort
    • Bulk Density
    image-number-6
    Custom designed and built in the U.S.A.
    image-number-7
    ISO 9001:2015
