Centrifuge Mobile Systems
Complete and Custom-Engineered Mobile Systems for Decanter Centrifuges

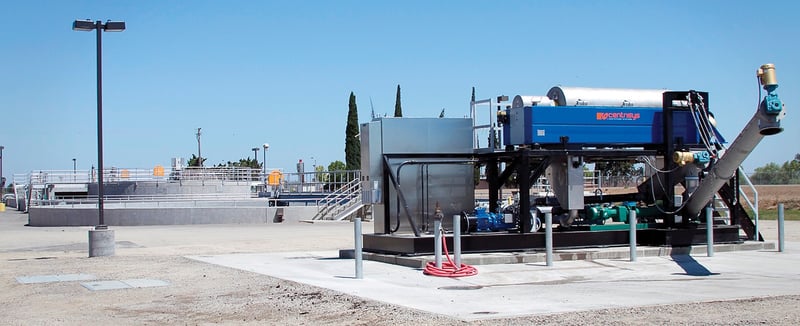

Complete skid mounted dewatering systems are designed with all the components required for sludge dewatering and thickening in one single package with flow rates ranging from 0 to 1,200 gpm (0 - 272 m3/h).
Systems are designed around the proven Centrisys high performance centrifuge or sludge thickener. Ancillary components, which complete the system, are chosen with performance and reliability in mind. Within a few hours of being on site, the turnkey system can be placed in operation within a minimal amount of time.
Smaller municipalities, as well as industrial companies, appreciate the simplicity of the Centrisys skid system. It is the most cost-effective, complete solution for sludge dewatering and thickening. Operators with multiple plants can use the mobility of a skid system for process requirements at several locations.
For most applications, the pre-fabricated design allows for easy installation, just drop the system in place and make your connections. The only connections required at your facility are:
- Feed
- Power
- Liquid discharge
- Centrisys CS centrifuge or THK sludge thickener
- Skid/stand structure
- Catwalks and handrails
- NEMA 4X PLC control system
- All VFD’s and motor starters
- Sludge feed pump (VFD controlled)
- Polymer blending unit
- Dewatered cake conveyor
- Sludge flow meter
- All inter-connective electrical and pipe work
- Multiple polymer injection points
- Cake transport systems (screw conveyor or cake pump)
- Single point connection manifold

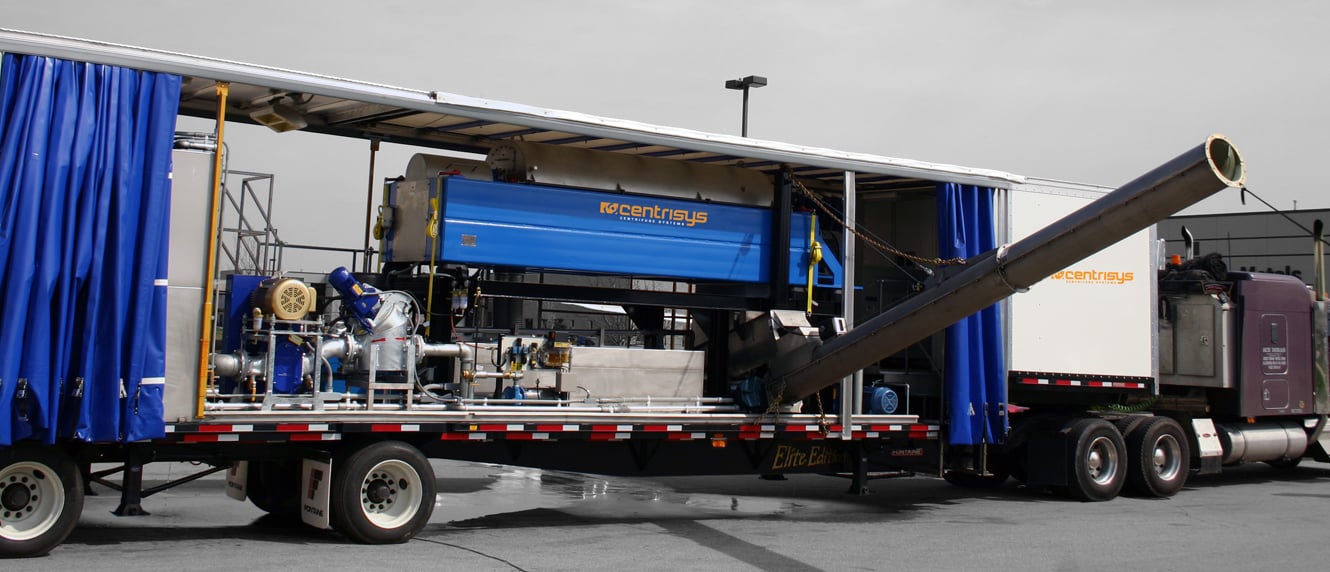

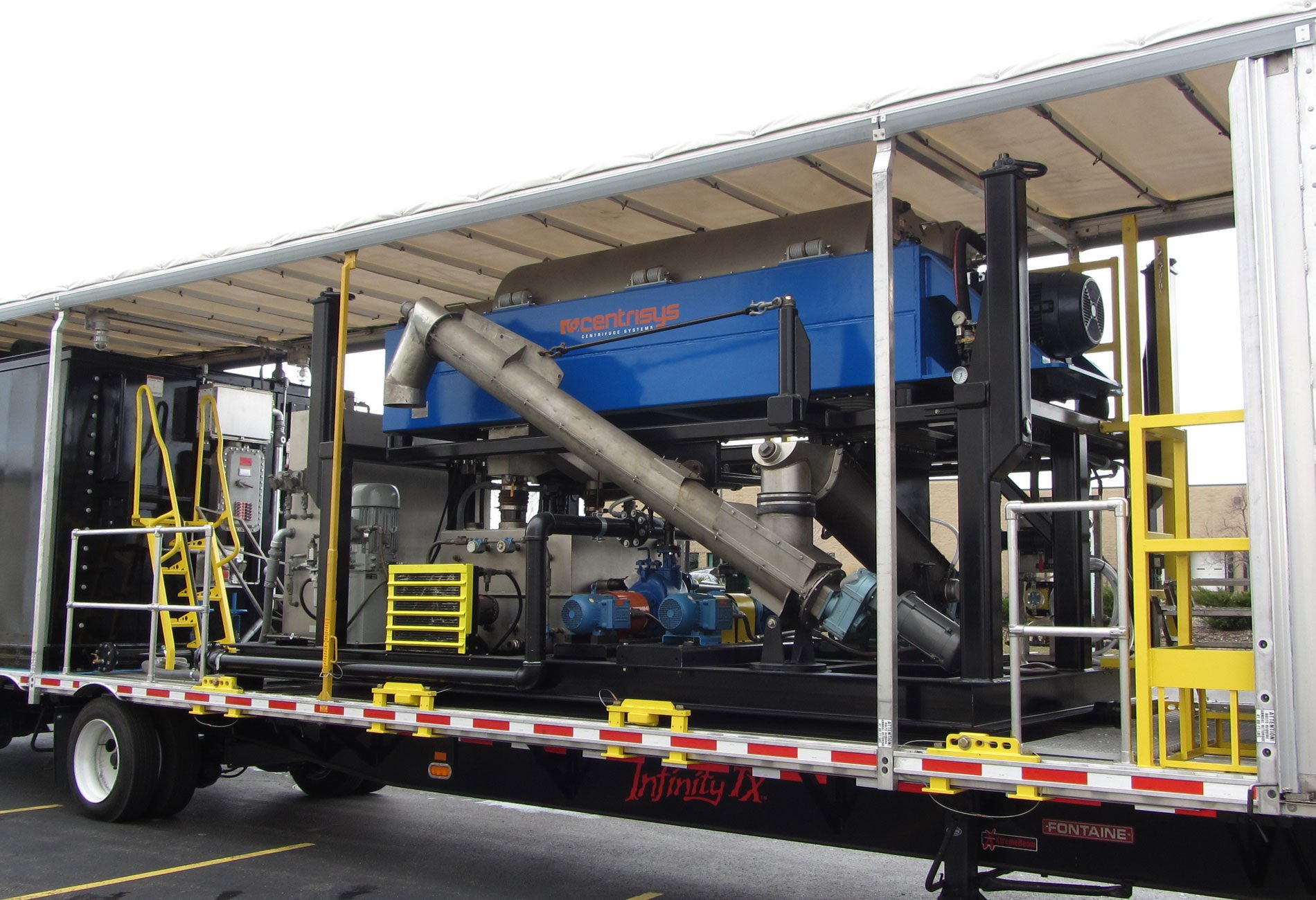

Systems Mounted on Versatile Road-Ready Trailers*
The Centrisys mobile system is a self-contained system for municipal and industrial dewatering and thickening. Each trailer is customized around a Centrisys high performance decanter centrifuge with all the key ancillary components required for dewatering and thickening sludge on wheels. A Centrisys trailer has the highest “total system uptime” on the market and is the most flexible solution for dewatering, along with the most robust process design for the entire trailer system.
Many municipal and industrial wastewater treatment facilities need just one mobile Centrisys dewatering system: they simply move it between plants as needed for sludge dewatering and thickening. Only power and process connections are needed for system start-up and mobile centrifuge dewatering capacities ranging from 5 to 700 gpm (1 to 90 m3/h). The entire range of Centrisys decanter centrifuges is available for trailer-mounted mobile systems.
To discuss available or custom trailer-mounted centrifuge systems for your application requirements, call one of our dewatering engineers.
*All Centrisys semi-trailer systems are in compliance with the US Department of Transportation. Permits are not required for transportation.
- Trailers with roofs and heavy-duty, retractable sides
- Trailers with generators
- Enclosed operator work stations (heated and/or cooled)
- GPS Tracking
- Remote monitoring
- Spill containment system
- Walkways and handrails available for additional operator safety
- Single point connection manifold
- Multiple polymer injection points
- Single source solution for supply and service for all the components on the trailer
- Multiple polymer injection points
